Imaging Device |
||
1. SCREEN (Stewart Studio Tek130) 2. PROJECTOR (VICTOR DLA-HD100) |
||
1 SCREEN | ||
SPECIFICATION and ORDER SHEET # Studiotek 130 G3:200inch (1.78:1) # Microperf X2 THX-Ultra # AT2 Series frame, Masked, # Screen housing to be hung via 3 Eye bolts(left,center.right) :(詳細は文末の英文資料参照) |
||

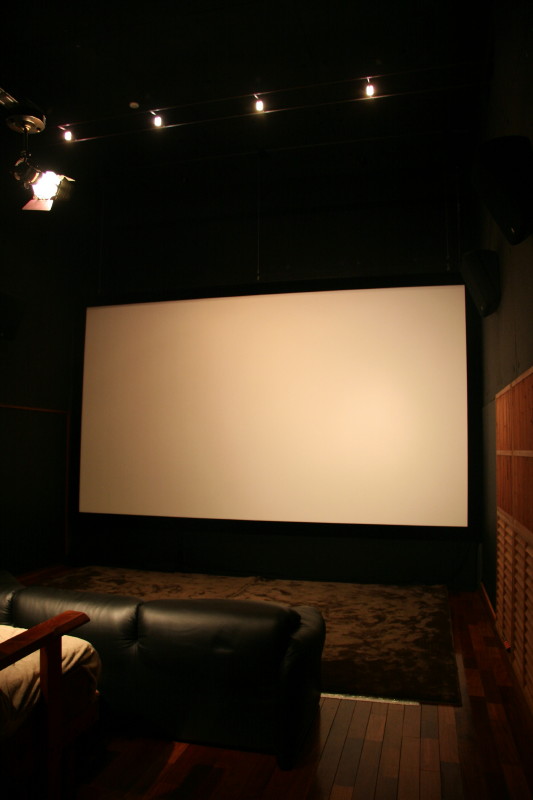

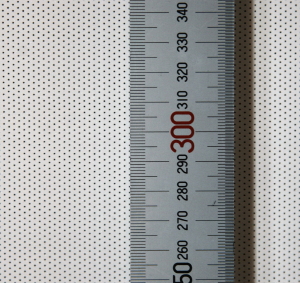

スチュアートの200インチの16;9スクリーンを設置しています。音声透過型で、小さな穴が開いています。いわゆるサウンドスクリーンといわれるものです。継ぎ目のない大きなサウンドスクリーンを製造できるメーカーは多くはありません。音を通すので、スピーカーを裏に配置して隠すことができます。台詞や効果音がスクリーンの中に定位します。これは映画鑑賞では大きなメリットです。4.7x2.7mで、30畳に入れても巨大です。

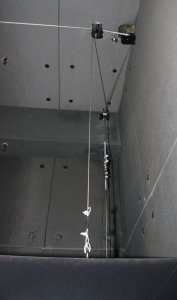

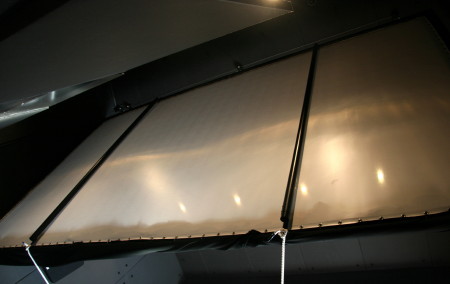

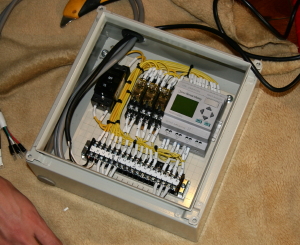

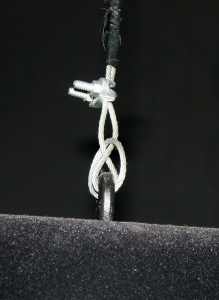

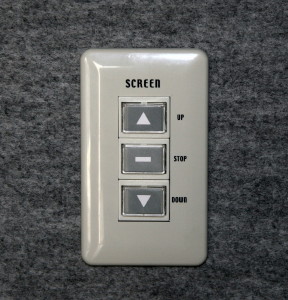

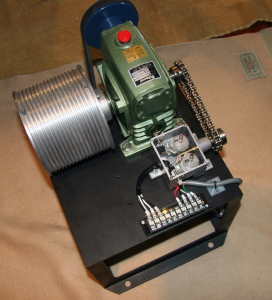

スクリーン昇降用のモーターとギアボックス。ブレーキや定位置での停止機構を制御する回路もオリジナル。スクリーン裏の壁面スラブに固定する台座は鉄工所に発注。スクリーンは重く大きいため、落下等の万一の事故も考慮して、駆動システムは回路から専門業者に発注しています。 スクリーンフレームの上部、左、中央、右の三箇所にアイボルトがあり、これにワイアーをかけ、天井から吊っています。天井には滑車を数箇所儲け、昇降式にしています。2メートル程上下するオリジナルの電動昇降システムで、リモート操作が可能です。昇降式にしたのは、スクリーン裏のスピーカーやパワーアンプのメンテナンスのためです。 左はスクリーン昇降スイッチ、上限と下限をメモリーし、ストップボタンで任意の位置に停止できます。下限が通常の視聴位置で、プロジェクターの台形補正を使用しないですむ高さになっています。 3点のアイボルトにワイアーをかけ。その直上に滑車を設け、モーターまでつながっています。スクリーン周囲はつや消し黒。樹脂製ですが表面は布製の起毛仕様となっています。この部分は反射がないので、多少の画像のはみ出しはわかりません。 スクリーン裏面の写真です。縦に大きな梁が2本入っています。以前150インチの同社サウンドスクリーンを角型フレームに張り込んで10年使っていましたが、スチュアートのフレームおよびスクリーンは、非常に精度が高く、スクリーンは長年にわたって平面を維持します。
|
||
HOME |
The following descriptions are the quotations from the homepage of Stewart. Stewart |
||||||||||||||||||||||||||||||||
StudioTek 130 G3 |
||||||||||||||||||||||||||||||||
StudioTek 130 G3 is a flexible front projection screen surface
that is over 30% brighter than matte-white material. The G3’s ultra-fine optical
coating improves uniformity for consistent brightness across the entire screen.
Developed under the direction of Joe Kane, StudioTek 130 G3 is the reference
standard projection material within the AV industry. |
||||||||||||||||||||||||||||||||
Features:- Over 30% brighter than matte-white material Industry’s standard reference screen Re-formulated optical coating allows for enhanced focusing capabilities Superb color and white field uniformity Endorsed by Joe Kane Productions (JKP) Certified by the Imaging Science Foundation (ISF) |
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
AT-SERIES FRAME OPTIONS |
||||||||||||||||||||||||||||||||

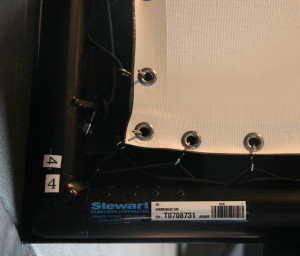

Stewart’s AT-Frame series are
constructed of seamless tubing, heli-arc welds, shock (stretch) cord and "S"
hooks to secure the screen’s edge through strategically placed grommets.
|
||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
Stewart Filmscreen is synonymous for superior quality, custom craftsmanship and excellent customer service. Since every Stewart product is handcrafted, custom sizes and configurations are easily accommodated | ||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||
Stewart Filmscreen introduced Microperforations with a primary goal of allowing audio emitted from speakers placed behind the screen to reach the viewer with a minute effect in audio or visual quality. With over 30,000 miniature holes per square foot of projection material, a Microperforated screen captivates audiences with a superb image and smooth flawless sound. Microperf X² consists of a unique perforation pattern that Stewart has been using for more than a decade with only slight modifications. Through extensive research and development, Stewart holds strong as industry leader providing a custom solution eliminating any so-called “Microperf Moiré”. Microperf X² performs above & beyond in both visual and sound quality during AB comparisons to woven screens and other acoustically treated projection materials available in today's A/V market. The vibrancy of an image shown on a woven screen suffers from cross reflection created by construction of the screen material itself. Essential to meet only the highest standards within the A/V industry, Stewart's strategically calculated perforation layout avoids compromising image or sound quality in any way. Microperf X² is the # 1 choice, providing the viewer up to 70% more brightness, higher resolution, superior color saturation, and excellent uniformity compared to all the others. Why Microperf X² is the industry's #1 choice for acoustically transparent material …
|
||||||||||||||||||||||||||||||||
Want more info on perforated screens?Results of the AB comparisons can be found in the white paper: By Alan Brawn, CTS screen-microperf wp rev1 byAlan.pdf | ||||||||||||||||||||||||||||||||
Stewart Filmscreen Receives International Grand Prix Award for StudioTek 130 G3 Screen Material |
||||||||||||||||||||||||||||||||
Torrance, CA – January 30, 2008 - Stewart Filmscreen is proud to have received a Grand Prix Award from the Japanese publication HiVi for their StudioTek 130 G3 front projection screen. Thomas Stewart, CFO of Stewart Filmscreen, went to Japan to personally receive the award during a special awards ceremony attended by 135 of Japan's top audiovisual professionals. StudioTek 130 G3 still offers the same reference standard of reflectivity and needed gain as the previous version, however, the newer G3 version offers a smoother screen surface with significantly less granularity, providing superior performance with the latest 1080p projectors. HiVi praised StudioTek 130 G3 for its ability to take full advantage of 1080p resolutions with noticeably increased color saturation and detail. They found the G3 formulated screen, when compared with other screens, was able to display images with a higher dynamic range for pure white and black. "We are pleased with HiVi's recognition of our
StudioTek 130 G3 screen, which has also received an enthusiastic endorsement by
Joe Kane Productions,” said Grant Stewart, President of Stewart Filmscreen.
"With this new G3 optimization we have created what we believe will be the
defacto reference screen for 1080p (and beyond) projection systems." |
